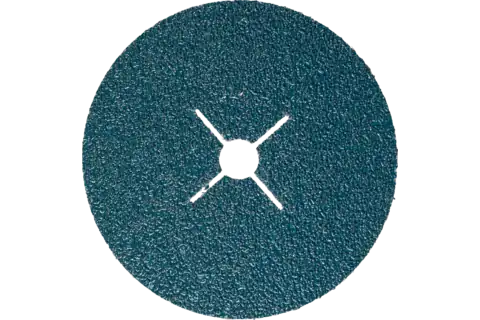

Fibre discs slotted

fibre disc dia. 180mm VICTOGRAIN 36 for maximum performance on steel

Item number:
64279014
EAN:
4007220176238

Login / Register
Choose options
Abrasive
Dia. external
Grit size
Packaging unit
Technical information
fibre disc dia. 180mm VICTOGRAIN 36 for maximum performance on steel

Abrasive
VICTOGRAIN
Dia. external
180 mm
Dia. hole
22 mm
Grit size
36
Max. RPM
8500 RPM
Packaging unit
25 pieces
Description

PFERD fibre discs are manufactured in accordance with ISO 16057 in shape A1 version F under the designation "vulcanized fibre disc".

For maximum aggressive grinding with an extremely long tool life and an outstanding stock removal rate on steel and hard materials. Outstanding, constant high performance thanks to the VICTOGRAIN abrasive grain.

The VICTOGRAIN abrasive triangles are fixed to the substrate on one of their sides. This means they are securely fixed in place and, together with their slim design, offer an extremely large chip space in order to further improve machining efficiency. The structure of the triangular VICTOGRAIN has also been specially adapted to maximize results. The very small crystals inside the triangles ensure optimal wear characteristics as sharp cutting edges are always exposed, but only the minimum amount of abrasive grain/the triangle breaks off. By combining all these properties together, users benefit from the ultimate, constant performance during cool grinding and an extremely long tool life together with consistent workpiece surface roughness.

Advantages
  • High economic efficiency thanks to long tool life and very high stock removal rate.
  • Consistent surface finish thanks to high-quality abrasives.
  • Highly flexible, enabling optimal adjustment to the contour.
  • Efficient machining process with fast work progress, long tool life, less heat build-up in the workpiece, and a lower power output required for the tool drive thanks to VICTOGRAIN abrasive grain.
Recommendations for use
  • Use fibre disc in accordance with ISO 15636 with backing pad on commercially available angle grinders.
  • Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.
Ordering notes
  • Please order backing pad separately.
Safety notes
  • The maximum permitted peripheral speed is 80 m/s.
  • For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
Materials that can be worked
Cast steel
Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
Hard non-ferrous metal
Nickel-based alloys (e.g. Inconell and Hastelloy)
Steel
Steel, cast steel
Steels up to 1,200 N/mm² (< 38 HRC)
Applications
Deburring
Leveling
Surface work
Working on edges
Work on weld seams
Drive types
Angle grinder
Cordless angle grinder
Drive spindle
