Pneumatic straight grinder PGAS 4/250

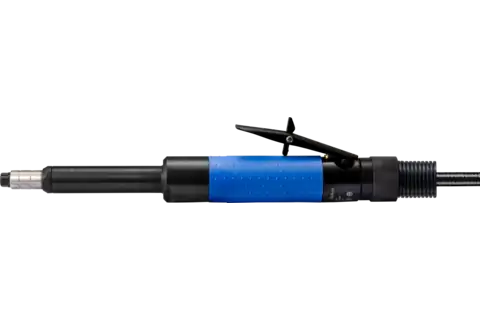

Air-powered straight grinder PGAS 4/250 M-HV 25,000 RPM/440 watts

PGAS 4/250 M-HV
Item number:
80106007
EAN:
4007220419724
Air-powered straight grinder PGAS 4/250 M-HV 25,000 RPM/440 watts 1
Air-powered straight grinder PGAS 4/250 M-HV 25,000 RPM/440 watts 1
Technical data Change variant
Login / Register
PFERD TOOLS worldwide
Choose options
PFERD TOOLS type
Throttle type
Version
Reset Filter
Technical information
Air-powered straight grinder PGAS 4/250 M-HV 25,000 RPM/440 watts
Air consumption, at idle
0.98 m³/min
Air consumption, under load
0.87 m³/min
Air supply hose internal dia.
8 mm
Collet group
6
Exhaust direction
rear
Height
39 mm
Incl. dia collet [mm]
6 mm
Length
335 mm
Net weight
1.198 kg
Number of oil drops [min]
4 drops
Operating pressure
6.3 bar
PFERD TOOLS type
PGAS 4/250 M-HV
Power output
440 watts
Rotational speed
25000 RPM
Throttle type
Lever
Version
with medium-length extension
Width
39 mm
Packaging unit
1 piece
Description

The drive is equipped with a collet tool mounting for mounted tools.

The exhaust direction the air grinder is at the back.

Due to the lever valve, the drive has a dead man's switch.

Thanks to its medium-length design, the drive is ideal for use when access is restricted.
Advantages
  • No dust turbulence on the workpiece side.
  • Safe working using dead man's switch.
  • Perfect for use when access is restricted.
Recommendations for use
  • The grinder can also be operated without oil; however, this will lead to a shorter service life and reduced rotational speed and power output.
Safety notes
  • The drive must be operated with the specified number of oil droplets in order to prevent premature malfunctioning.
Downloads
wzh25-catalogue-9-web-int-en.pdf katalog-9-update-2022-web-en.pdf 237001 Sicherheitshinweise 2024 DL.pdf 237066 PGAS 4-250 M-HV.pdf
